SPECIFICATIONS
|
Pipe Size |
“1” “3” “5” port (common port) |
Rc 1/4 (on sides of manifold block) |
|
“2” “4” port (separate port) |
Rc 1/4 (on each valve body) | |
|
Effective Area (IN-OUT/OUT-EX) |
21/18mm² 2 position Single / Double solenoid | |
| 18/13mm² 3 position Double solenoid | ||
|

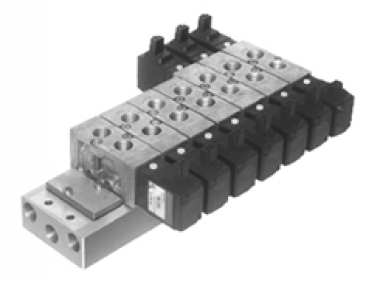

Max. no. of valves possible on the manifold block |
8 | |
* Other specifications are common to 501 Series, In-line type.
