Area Classification Explosion Proof, Intrinsically Safe, FISCO, Type N, Flame Proof, Non-incendive for FM
Certifications CSA, FM, ATEX, IECEx, CUTR, Lloyd's Register, Peso, KGS, INMETRO, NEPSI, TIIS, Natural Gas Certified, Single Seal Device
Communication Protocol FOUNDATION Fieldbus
Data Interface Wired
Diagnostics Yes
Input Signal Electric
Max Outlet Pressure 145 psig
Mounting Type Integral Mounted
Operating Temperature Standard Temperature, High Temperature
Position Control Throttling Control, On/Off
Power Source Local
Process Control Flow, Pressure, Temperature, Level
Supply Media Air, Natural Gas, Nitrogen
Other Configurations Contact your local Emerson business partner or sales office to learn about additional specifications or options for this product.
Features
The high performance, linkage-less feedback system eliminates physical contact, which eliminates wearing on parts.
The fully encapsulated electronics resist the effects of vibration, temperature, and corrosive atmospheres.
Provides quick responsiveness to large step changes and precise control for small setpoint changes.

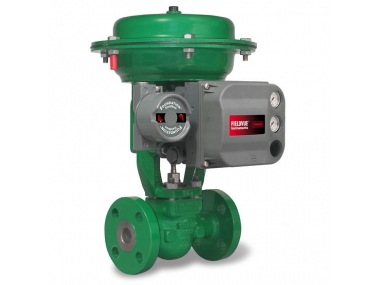

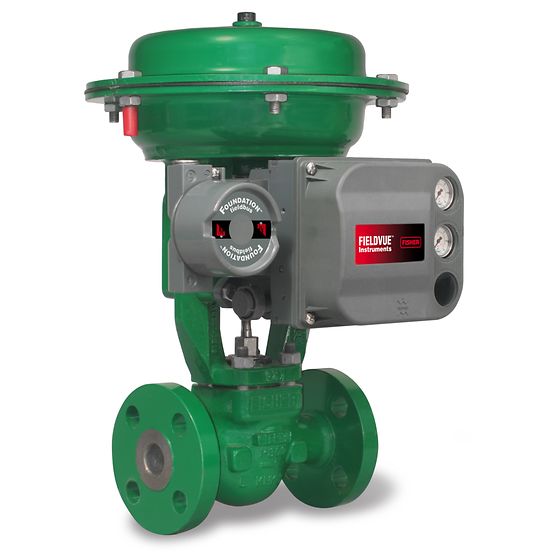

The DVC6200f is a FOUNDATION™ fieldbus communicating device, so information can be accessed anywhere along the segment. This flexibility can reduce exposure to hazardous environments and make it easier to evaluate valves in hard to reach locations.
Create or delete function blocks in the device to customize the device for a specific application.
When installed in an integrated control system, significant hardware and installation cost savings can be achieved.
The self-diagnostic capability provides valve performance and health evaluation.
Improved maintenance decisions are possible due to easy access to the condition of the valve.
